Hello World API using MuleSoft AnyPoint Platform

Home  >>  MuleSoft  >>  Hello World API using MuleSoft AnyPoint Platform

Hello World API using MuleSoft AnyPoint Platform

On November 3, 2021, Posted by , In MuleSoft, With Comments Off on Hello World API using MuleSoft AnyPoint Platform
Hello World API Using Mulesoft Anypoint Platform

Dear Readers,

In the previous post, you have learned what MuleSoft is and why it is useful for the enterprise business and how it is helping us to integrate the various systems and helping the business to have everything in one place to help their employees to boost productivity and help their customers as well.

Introduction

In this blog post, we will talk about how to develop your first API and yes we will start with Hello World API which is the basics for all programming languages.

System Requirements

Like every programming language we have to do the setup, MuleSoft also has its studio which is used to develop the APIs and MuleSoft project. Below is the system requirement which is required to develop the API using the MuleSoft platform.

PC requirement

  1. 2GHz CPU
  2. 20GB free hard drive space
  3. 8 GB RAM ( 16 GB RAM is recommended )

System Requirement

  1. JDK 8 or above ( Now included with Anypoint Studio ) Or
  2. Zulu JDK ( Now included with Anypoint Studio )
  3. PostMan ( preferred ) or Advanced Rest Client for testing the API

Download AnyPoint Studio Platform

Before we start working on our first API, we need to download the required tool which is AnyPoint studio, to download the tool click on the given link and download for the required OS which you are using.

https://www.mulesoft.com/lp/dl/studio

MuleSoft_Chatper_2_Image_ 30 Day Trial

Note: – If you see a 30-day free trial. Please do not get panicked it is a lifetime free tool that we can use. 30 Days free trial is for Anypoint cloud-based platform.

Once you have downloaded the file, please follow the below link to install the studio on Mac OS.

Link to install the Studion in Mac OS – https://docs.mulesoft.com/studio/7.10/to-download-and-install-studio-ox

To install the studio in Windows OS follow the below steps

  • Extract the zip file and store it in any drive of your machine
  • Navigate to the location where you have extracted the studio
  • Double click on the “AnypointStudio” file to open the studio

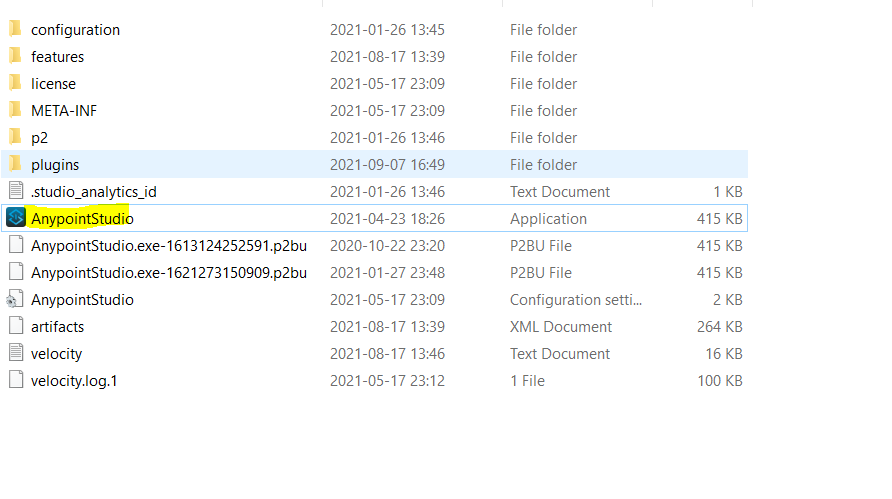

  • You will see the below screen and you can choose which location you want to store all your MuleSoft Projects
MuleSoft_Chatper_2_Image_3_AnyPointStudio_Installation_Folder_structure

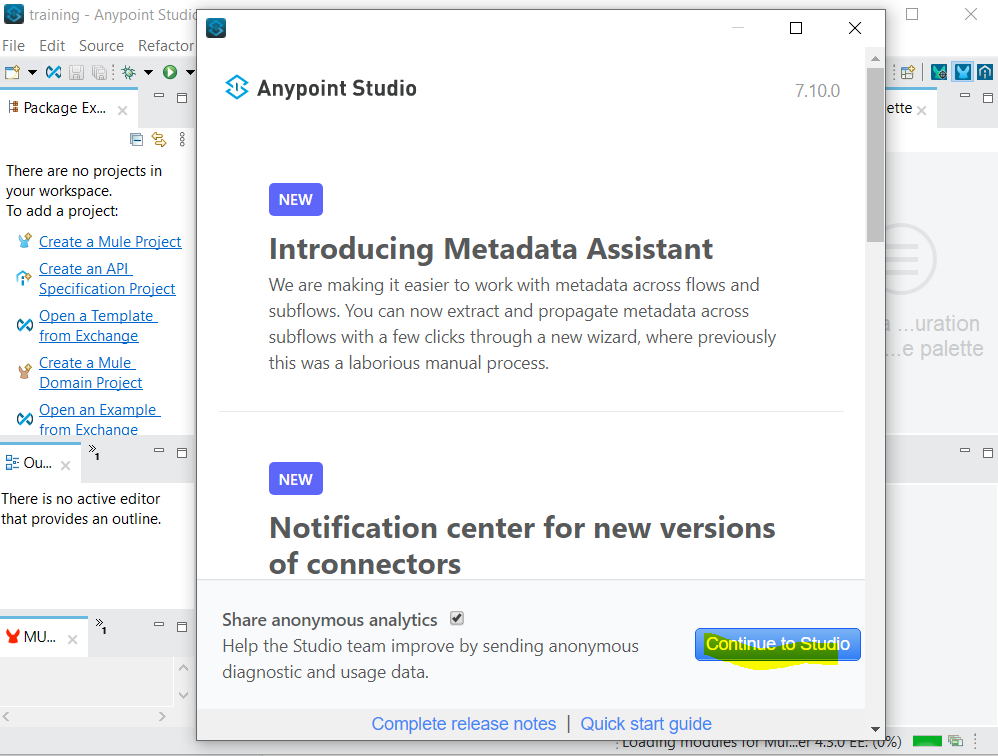

MuleSoft_Chatper_2_Image_4_AnyPointStudio_Introducing_Metadata_Assistant

If you see the popup like below then click on the “Continue to Studio” button

Introduction to Mule Events

Before we actually start working with our first API, we need to understand a very important concept which is of Mule Event.

  • A MuleEevent is something that contains the core information related to the API endpoint at the run time of the API or MuleSoft Project.
  • Mule Events are immutable that means if we change the Mule event it will create a new instance of the Mule Event.
  • In MuleSoft the output of one component becomes the input for the next component.
  • Mule Event is consist of two-part
    • Mule Message
    • Variables

Mule Message is consist of two main parts

  • Attributes – Attribute contains the key information about the API URL like headers, query parameters, URL parameters, the API path and etc
  • Payload – Payload is the main data that we are processing through our API. For example, We are sending the array of records to create Accounts in Salesforce, the payload will contain an array of records.

Variables are the event data that a developer can create on their own to use further in the mule flow or in the mule project.

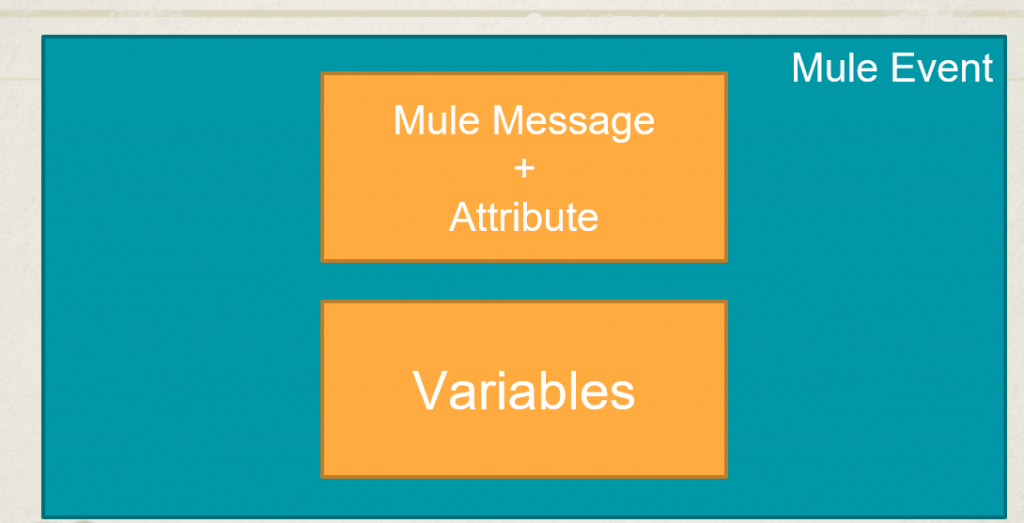

Check the below image for the complete reference

MuleSoft_Chatper_2_Image_6_Mule Event Mule Message Attribute

Below is the image which have the basic idea about how a mule Application looks like

MuleSoft_Chatper_2_Image_7_Mule Application Event Trigger

Create Hello World MuleSoft Project

Once the studio is launched successfully the first step is to create the MuleSoft project. To create the project follow the below Steps.

1 – Click on the File > New > Mule Project

Provide the name of the project let’s say “hello-world-API” and click on finish.

Initially, you will see a blank canvas as you can see in the above image. As we have discusses every API is a URL that we hit either from the browser or from the code or from MuleSoft.

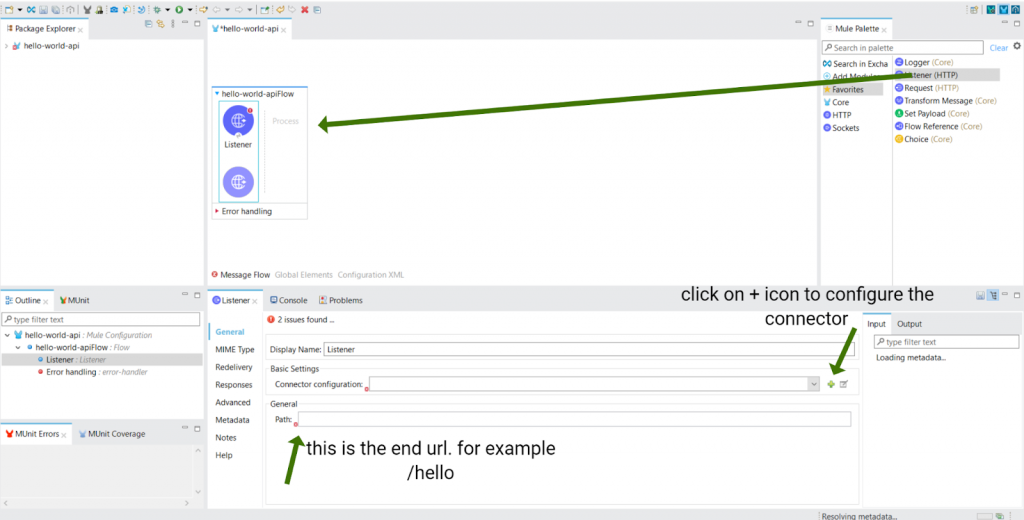

So, to develop our first API we need to put a listener in the canvas. Drag the Listener component from Mule Palate to Canvas. Check the below image for reference.

MuleSoft_Chatper_2_Image_11_MuleSoft

Once you have dragged the listener component to the canvas. It’s time to configure the listener. As shown in the above image click on the green + icon and then click on the Ok button.

MuleSoft_Chatper_2_Image_12_MuleSoft Project http listener configure

Now, put /hello for the path in the listener configuration which is actually telling which endpoint or URL the API needs to hit.

Your configuration will look like below;

Transform message: This component is used to either transform the input to other format or used to send the response to client which is accessing the API. For example you are sending the JSON input and the target system is needed XML so in this case you will use Transform Message to convert JSON to XML.

Now drag & drop the Transform message component into the Canvas from the Mule palate. When you will drag the component make sure you are dragging under the process section.

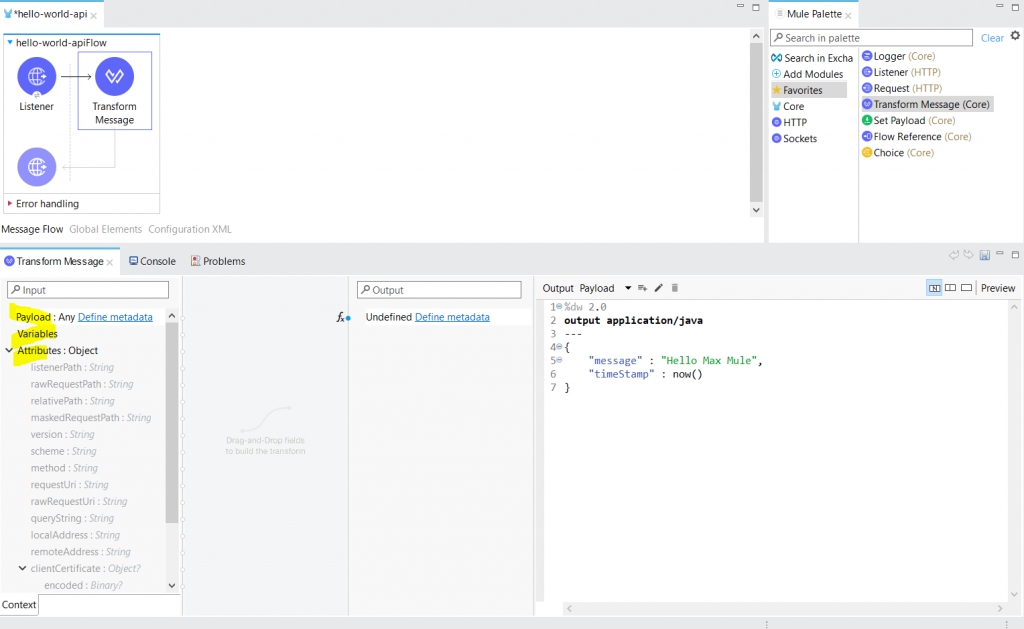

When you will be on the Transform message, on the left you will the Mule Event with all the properties which we have discussed. Here is the Complete flow that you will see.

MuleSoft_Chatper_2_Image_14_MuleSoft Project Listener Transform Message

Below is the code which I have used in transform message.

%dw 2.0
output application/java
---
{
"message" : "Hello Max Mule",
"timeStamp" : now()
}

Run the Application

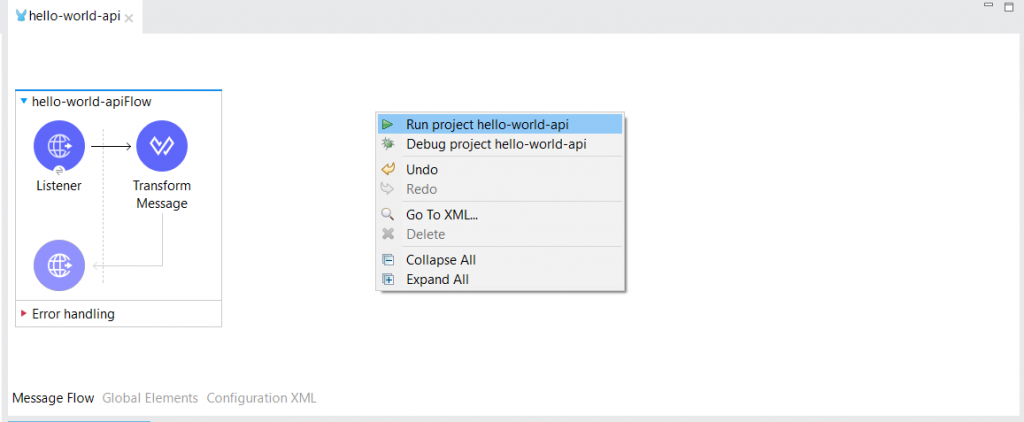

As we have completed the development of the API. Right click on the canvas and the  Select Run Project “Project Name”. And then wait for a couple of minutes.

In the meantime, please open the Postman or Advanced Rest Client.

MuleSoft_Chatper_2_Image_15_MuleSoft Project Listener Run Application

While running the project if you see a popup like below then click on Allow Access

MuleSoft_Chatper_2_Image_16_MuleSoft Project Listener Running the Project

You will see the deployed message like below

MuleSoft_Chatper_2_Image_17_MuleSoft Project Deploy Message

Test the API

To test the API, open your web service testing toll ( either postman or advanced rest client ) and then hit the URL from the postman

To prepare the URL you need to use http://localhost:YOUR_PORT_NAME/hello

YOUR_PORT_NAME is the port which you have configured in connector. To see the connector configuration. Click on listener and then edit connection. See below image

MuleSoft_Chatper_2_Image_18_MuleSoft Project HTTP Listener Config

Now, our final url will be http://localhost:8081/hello

Below is the outcome from the API

MuleSoft_Chatper_2_Image_19_MuleSoft-Project-Query-Params

Hope you have enjoyed reading and learned something.

Thanks for reading.
